Why Fuel Filtration Determines Engine Reliability

A marine fuel filter is the last line of defense between bunkered fuel and precision injection components operating at pressures above 2,000 bar. Get the micron rating wrong, neglect water separation, or stretch change intervals past Gulf-adjusted limits, and the cascade starts: injector scoring, fuel pump seizure, rising exhaust temperatures, and unplanned off-hire. Fuel filtration is not a consumable afterthought. It is a reliability decision that determines whether your engine survives the next bunkering.

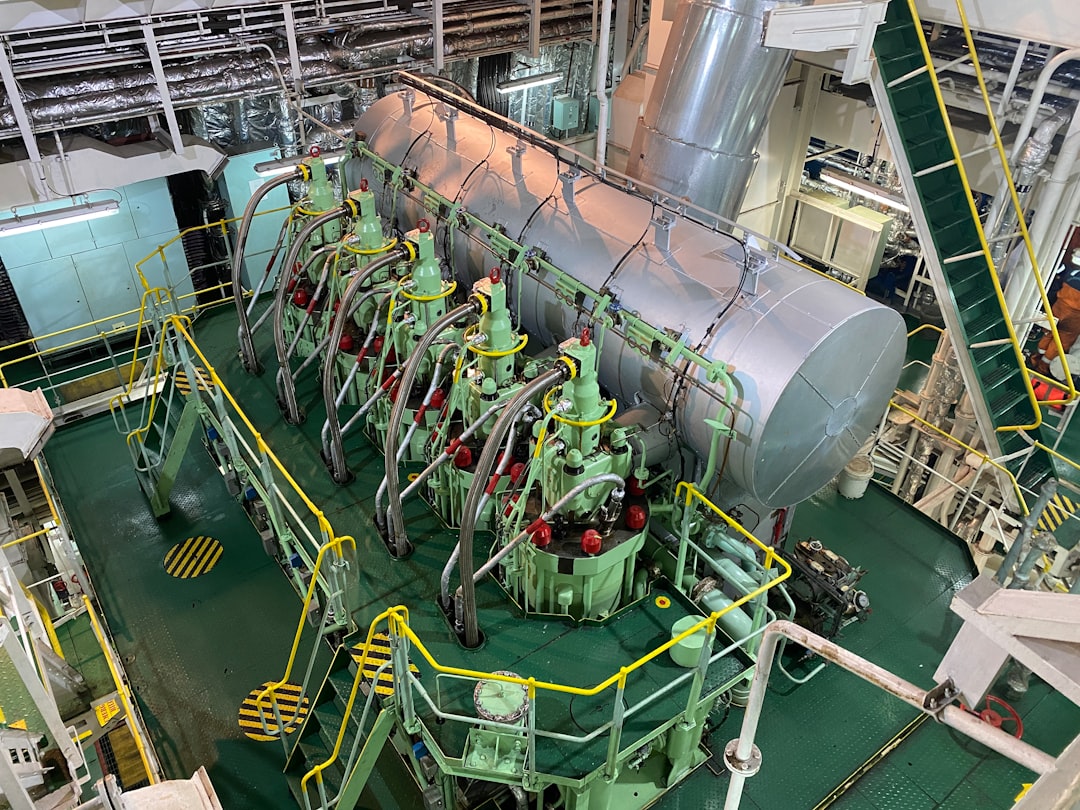

For chief engineers managing Caterpillar mains, MAN auxiliaries, or Wärtsilä propulsion in Gulf commercial service, fuel filtration strategy must account for three variables that temperate-climate OEM baselines do not fully address: fuel quality variability between regional bunkering ports, ambient temperatures that regularly exceed 45°C in summer, and the specific micron and water-separation requirements of each engine platform’s injection system. This guide covers fuel type contamination profiles, primary and secondary micron selection, flow-rate sizing, Gulf-specific failure modes, and real-world adjustment of OEM change intervals. For a broader treatment of filter types across fuel, oil, air, and hydraulic systems, see our marine engine filters guide, which includes dedicated coverage of separator filter elements and fuel-water separation principles.

Fuel Types and Their Filtration Demands

The fuel in your tanks dictates the contamination profile your filtration system must handle. HFO carries asphaltines and catalytic fines. MGO and ULSFO are cleaner but vulnerable to microbial growth and water accumulation. Blended fuels inherit the worst characteristics of both parents. Each fuel type demands a specific filtration strategy, and selecting a marine fuel filter without considering the fuel’s contamination signature is a common and costly mistake.

Heavy Fuel Oil (HFO)

HFO requires the most aggressive treatment train of any marine fuel. Heated to 130-150°C for injection, it carries asphaltines (heavy hydrocarbon agglomerates that do not dissolve but can shear into fine particles under pumping), catalytic fines (aluminum and silicon oxide particles from refinery cracking catalysts, typically 1-5 microns but capable of agglomerating), and significant water content from bunkering and storage. The standard treatment sequence is settling, centrifuging, and fine filtration. Wärtsilä specifies that marine fuels must be treated on board to remove both solid contaminants and liquid contaminants, with fine filters installed after centrifuging in the engine supply line.

Catalytic fines deserve special attention. These particles have a Mohs hardness of 7-8, meaning they abrade fuel injection equipment faster than most wear metals. ISO 8217 limits cat fines in HFO to 60 mg/kg of aluminum plus silicon, but even at that level, fines reaching injectors after incomplete centrifuging can destroy nozzle spray patterns within hundreds of hours. The fine filter element downstream of the centrifuge is what stops the particles that centrifuging misses. If that element is the wrong micron rating or is loaded past its effective life, cat fines pass straight to the injection system.

Marine Gas Oil (MGO) and Ultra-Low Sulfur Fuel Oil (ULSFO)

MGO and ULSFO are distillate or near-distillate fuels with lower viscosity and lower sulfur content. They are generally cleaner than HFO at the point of bunkering, but they introduce a different threat: microbial contamination. Bacteria and fungi thrive at the fuel-water interface, particularly in warm fuel stored in partially filled tanks. The biomass these organisms produce clogs filters rapidly and generates corrosive byproducts that attack tank coatings and fuel system metals. In Gulf service, where fuel temperatures in day tanks regularly sit above 40°C, microbial growth rates are significantly higher than in temperate waters.

Water separation is critical for distillate fuels because modern common-rail injection systems have extremely tight clearances. Water droplets as small as 100 microns can pass a coarse primary filter and reach high-pressure pumps, where they cause cavitation erosion and lubricity failure. The primary filter’s coalescing media must be sized and specified for the actual fuel viscosity in service, not just the nominal rating on the element. A water-separation element that performs well on 380 cSt HFO at 130°C may underperform on 3 cSt MGO at 35°C because the lower viscosity produces smaller droplets that are harder to coalesce.

Blended Fuels

Blended fuels, including compliance blends created to meet the 0.50% sulfur cap, combine residual and distillate components. The problem is stability: blends can separate in storage, especially when heated and cooled cyclically, producing asphalentine precipitates and wax formation that no single filter stage can handle effectively. If your vessel runs blends, the filtration system needs dual-stage capability with high water-separation efficiency and provisions for frequent element changes during fuel transitions. Monitor differential pressure closely for the first 24-48 hours after switching fuel types, because instability byproducts load primary filters rapidly and can trigger bypass before the next scheduled watch inspection.

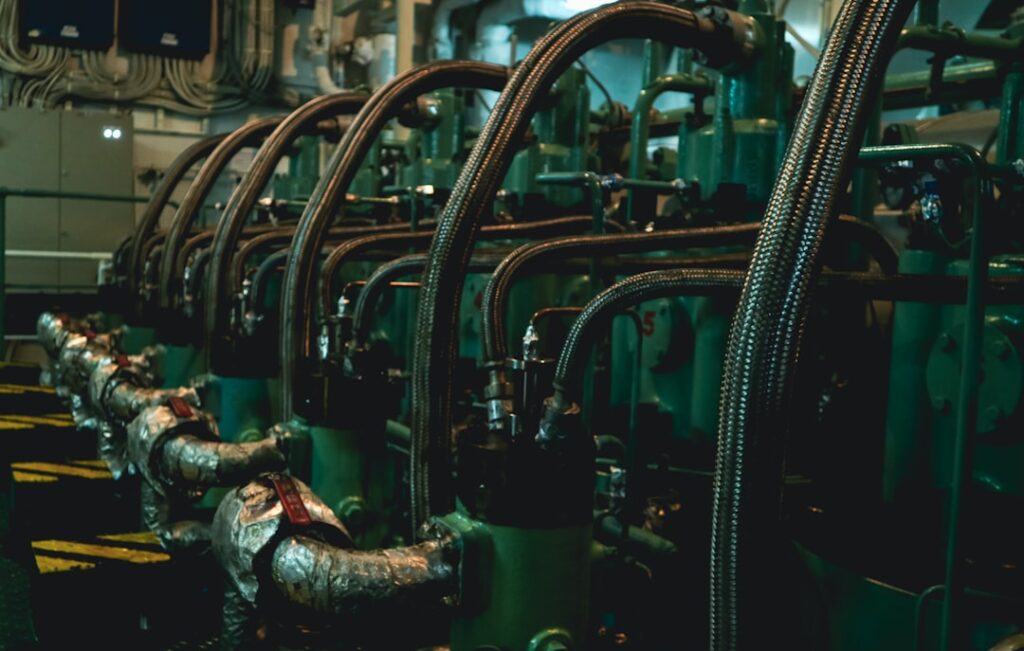

Marine Fuel Filter Micron Ratings: Primary vs. Secondary Filtration

A marine fuel filter is rated by the particle size it is designed to capture, expressed in microns (one micron equals one-thousandth of a millimeter). The rating tells you what the filter is built to stop, but not necessarily what it will stop under every condition. Filtration efficiency depends on media type, flow velocity, differential pressure, and whether the rating is nominal (capturing a percentage of particles at the stated size) or absolute (capturing essentially all particles at the stated size). For fuel injection protection, always confirm whether the published micron rating is nominal or absolute before accepting a cross-reference element.

Primary Filtration (Coarse Stage)

Primary fuel filters are the first defense. They capture larger particles and provide water separation before fuel reaches the secondary stage. Typical micron ratings range from 10 to 30 microns. The primary filter’s job is not to protect injectors directly. It is to reduce the contamination load on the secondary filter and remove free water that would otherwise saturate the fine media downstream.

Caterpillar’s published fuel system guidance describes the primary filter as the stage that removes water and larger debris. On Cat 3406, 3412, C18, and C32 marine engines, the primary filter assembly typically incorporates a water-separation bowl with a drain valve and a visual or electronic water-in-fuel sensor. The primary element must be sized to handle the full fuel circuit flow rate including return flow, not just engine consumption. A primary filter rated for 200 liters per hour on an engine whose fuel circuit moves 500 liters per hour will load prematurely and trigger bypass alarms long before the element reaches its nominal service life.

Secondary Filtration (Fine Stage)

Secondary filters sit between the primary stage and the injection system. Their micron ratings range from 2 to 10 microns, with modern common-rail systems typically requiring 2-5 micron absolute filtration. At these ratings, the filter captures the particles that would score injector nozzles and seize high-pressure pump plungers. The tighter the injection system tolerances, the tighter the secondary filtration requirement.

MAN Diesel specifies secondary fuel filtration requirements for its medium-speed four-stroke engines that account for the injection equipment’s internal clearances. For electronically controlled engines with common-rail or ME-series injection, the secondary filter must deliver high efficiency at single-digit micron levels because the fuel quantity controller and injection nozzles operate with clearances measured in single-digit microns. A 10-micron nominal filter on a common-rail engine is not adequate protection. It is a deferred failure.

Wärtsilä’s approach is similar: fine filtration is specified after the centrifuge stage, with the filter element rated to protect the specific injection system on the engine. The exact micron requirement depends on the engine model and fuel system generation, which is why ordering a replacement filter by engine model name alone, without the serial number and arrangement number, produces wrong parts. Two engines with the same model designation but different arrangement numbers can use different filter elements with different micron ratings.

When Dual-Stage Systems Are Mandatory

Dual-stage filtration is mandatory for any engine with common-rail or unit injector technology, any vessel running HFO, and any operation where fuel quality is variable or unverified. Single-stage filtration may be acceptable for small auxiliary engines running known-quality MGO on short cycles, but it is a calculated risk, not a cost saving. The difference between a 2-micron absolute secondary filter and a 10-micron nominal single-stage filter is the difference between protecting a 2,000-bar common-rail injector and feeding it abrasive contamination that will score the nozzle within hundreds of hours.

Sizing Marine Fuel Filters for Flow Rate and Viscosity

A filter element that cannot handle your engine’s fuel consumption rate at operating viscosity will starve the injection system, regardless of how good its micron rating is. Sizing a marine fuel filter requires matching flow capacity to engine demand while accounting for viscosity at the fuel’s actual delivery temperature. An element with the correct micron rating but inadequate flow capacity will produce high differential pressure, trigger bypass, and deliver unfiltered fuel to the injection system.

Flow Rate Calculation

Fuel filter flow capacity must exceed the engine’s maximum consumption rate with margin for recirculation and return flow. A Caterpillar 3516C marine engine at full load consumes approximately 600 liters per hour of fuel. The filter assembly must handle that consumption plus the return flow from the injection system, which can double the total throughput depending on system design. The filter housing and element must be rated for that total circuit flow, not just the consumption figure.

Undersized filters produce three problems: high differential pressure that collapses the element or triggers bypass, reduced fuel delivery pressure that affects injection timing and combustion quality, and accelerated element loading that shortens service life. Always specify the filter assembly’s rated flow against the engine’s total fuel circuit demand, not just consumption. If you are replacing a filter housing rather than just the element, verify that the replacement housing’s port size, bypass valve setting, and flow rating match the original specification.

Viscosity Considerations

Viscosity directly affects filter performance. HFO at 50°C may have a viscosity of 380 cSt or higher, making it too thick to pass through fine filter media without being heated. The fuel must be heated to 130-150°C to bring viscosity down to the 2-15 cSt range that injection systems and fine filters require. If the heater underperforms or the fuel temperature drops between the heater and the filter, viscosity rises and flow through the media drops, increasing differential pressure and risking element collapse.

MGO and ULSFO have much lower viscosity at ambient temperature (typically 2-6 cSt), which makes them easier to filter but also means water droplets are smaller and harder to coalesce. The filter’s water-separation efficiency must be validated for the actual viscosity range of the fuel in service, not just the nominal rating on the element packaging. A coalescer designed for 380 cSt HFO may pass water when operating on 3 cSt MGO because the lower-viscosity fuel produces finer droplet sizes that the media cannot effectively capture.

Common Filtration Failures in Gulf Operating Conditions

Gulf operations compress filter service intervals and amplify every contamination risk. Ambient temperatures regularly exceed 45°C in summer, seawater temperatures reach 35°C, and bunkering ports in the region vary in fuel quality and sulfur content. These conditions accelerate oxidation, promote microbial growth, and stress filter media beyond temperate-climate design assumptions. The table below summarizes the most common Gulf-specific failure modes and the corrective actions that chief engineers should build into their planned maintenance systems.

Gulf Condition	Filtration Impact	Recommended Action
Ambient 45°C+	Accelerated fuel oxidation; gum and varnish coating filter media	Shorten primary filter interval by 20-30%; monitor differential pressure daily
Seawater 35°C+	Reduced cooler efficiency; warmer service tanks promote microbial growth	Check fuel service temperature; verify heater controls for HFO viscosity management
High-sulfur HFO (scrubber-equipped vessels)	Sulfuric acid formation with water traces; housing and seal corrosion	Specify stainless steel housings; verify seal material chemical compatibility
Salt spray and Shamal dust	Salt ingress through tank breathers; rust particles and fine sand loading primary media	Inspect and seal tank breathers; check primary element for corrosion debris
Variable bunkering quality	Cat fines, water, and microbial contamination spikes after bunkering	Run fuel analysis after every bunkering; halve filter interval on flagged samples
Warm distillate fuel storage	Microbial biomass at fuel-water interface; rapid filter clogging	Apply biocide treatment; drain water regularly; replace primary element proactively

High Ambient Temperature Effects

At 45°C ambient, fuel in day tanks and service tanks runs warmer than in temperate operations. Warmer fuel oxidizes faster, producing gums and varnish that coat filter media and reduce effective flow area. Oxidation byproducts also form sediment that loads filters prematurely. The practical consequence is that filter elements rated for 500-hour service in temperate climates may need replacement at 300-350 hours in Gulf summer conditions. This is not a theoretical concern. It is a documented pattern across Gulf fleets that track differential pressure trends against operating hours.

Sulfur Content and Corrosion Risk

While the IMO 0.50% sulfur cap applies globally, vessels equipped with exhaust gas cleaning systems can still burn high-sulfur HFO in Gulf waters. High-sulfur fuel combined with even small amounts of water produces sulfuric acid in the fuel system, attacking filter housings, seals, and injection components. Stainless steel housings and chemically compatible seal materials are not optional in this service. They are the difference between a filter that lasts its service interval and one that corrodes through, contaminating the very fuel it was installed to protect.

Salt Spray and Airborne Contamination

Engine room ventilation in Gulf coastal service pulls salt-laden air through intake systems. While this is primarily an air filter concern, salt also enters fuel systems through tank breathers, sounding tubes, and bunker connections that are not properly sealed. Salt in fuel accelerates corrosion of tank internals, producing rust particles that load fuel filters downstream. During Shamal wind events, fine sand can penetrate the same paths, adding abrasive particulate to the contamination load and shortening primary filter life by days, not weeks.

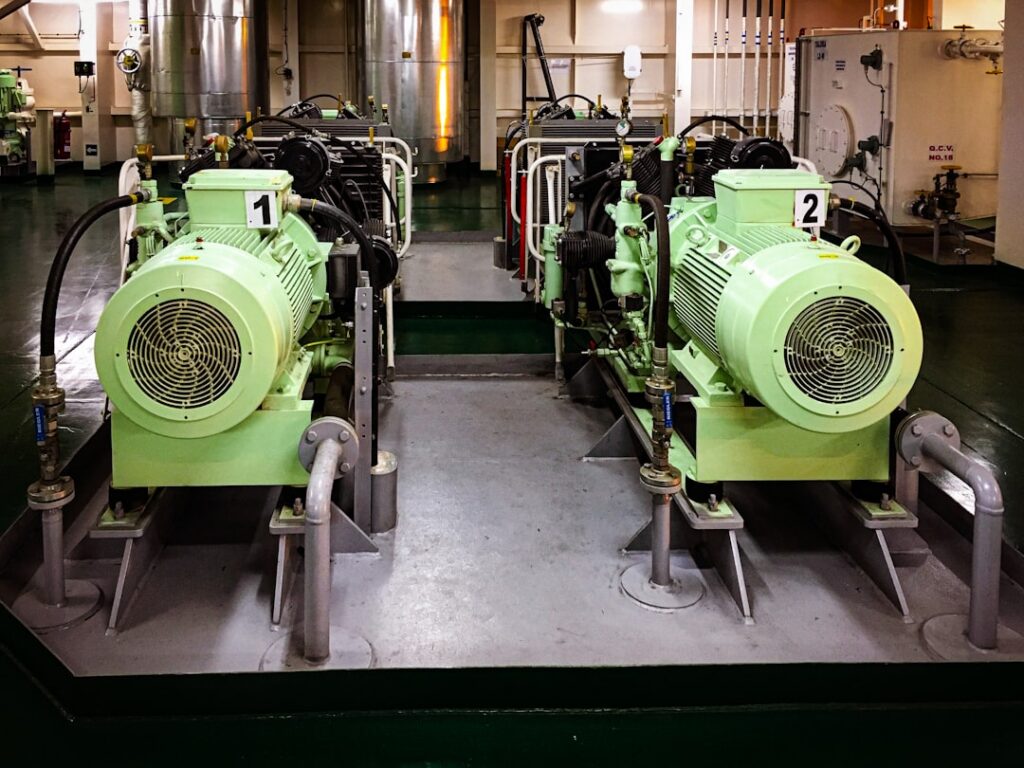

Change Intervals: OEM Specs vs. Real-World Adjustment

OEM change intervals are baseline recommendations for nominal operating conditions. In Gulf service, they need compression based on differential pressure trends, bunkering history, and fuel analysis results alongside operating hours. The adjustment is not arbitrary. It follows from tracking the right indicators and responding before the filter reaches bypass.

Caterpillar Marine Fuel Filter Intervals

Caterpillar publishes fuel filter replacement intervals in operation and maintenance manuals for each engine platform. For the 3406 and 3412 legacy platforms, standard intervals are typically 250-500 hours depending on the specific model and fuel quality. For C18 and C32 engines with advanced fuel systems, the secondary filter interval may be shorter because the fine media loads faster under high-pressure common-rail or MEUI duty.

Cat’s guidance is explicit on two points: replace filters when the restriction indicator activates, regardless of hours, and replace after any known contamination event. In Gulf conditions, restriction indicators may activate 20-30% sooner than in temperate service. If your fleet runs Cat engines, our Caterpillar marine engine spares resource covers part numbering and arrangement-number discipline for the 3406, 3412, C18, and C32 platforms, including filter part references and Gulf severe-duty interval adjustments.

MAN Energy Solutions Intervals

MAN specifies filter element replacement based on differential pressure for medium-speed engines. The automatic backflushing filter systems on MAN two-stroke engines have their own maintenance schedules, but the fine filter elements on the engine supply line follow a combination of operating hours and differential pressure monitoring. MAN’s documentation emphasizes that filter condition is a monitored equipment parameter tied to alarm management, not a passive consumable.

For MAN four-stroke auxiliary engines common on Gulf vessels, the secondary fuel filter element typically has a published interval in the 2,000-4,000 hour range under nominal conditions. In Gulf service with variable fuel quality, that interval should be treated as an upper bound, not a target. Monitor differential pressure at every watch and replace when the trend shows consistent upward movement, even if the alarm threshold has not been reached.

Wärtsilä Engine Intervals

Wärtsilä’s four-stroke engine filtration systems include both full-flow and bypass arrangements. For fuel filtration, Wärtsilä specifies fine filtration after the centrifuge stage, with element life depending on fuel quality and the effectiveness of upstream treatment. Wärtsilä’s published data on bypass lube-oil filtration shows element lifetimes up to 1,500 hours in the stated application, but fuel filter intervals are shorter and more sensitive to fuel quality variation. On Wärtsilä engines running HFO in Gulf service, expect fuel filter element life to track closer to the lower end of the published range, particularly during summer months when oxidation rates accelerate.

The Real-World Adjustment Framework

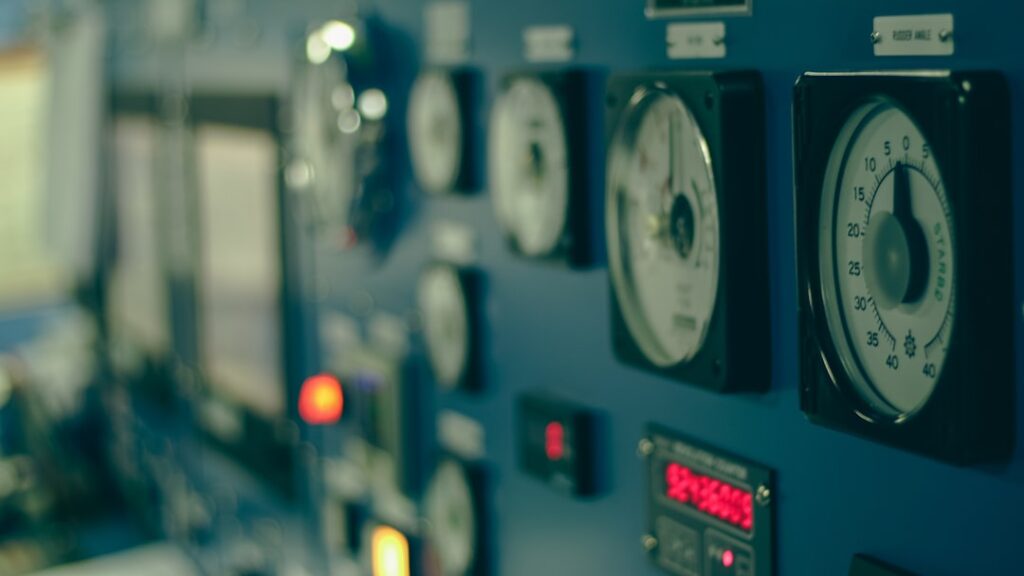

Start with the OEM interval as your baseline. Track differential pressure at every watch handover. Record every bunkering event with a fuel analysis sample. When differential pressure reaches 70% of the alarm threshold, schedule the next change at the next port call rather than waiting for full hours. If fuel analysis shows elevated cat fines, water, or microbial contamination, halve the interval until the next clean bunkering and inspect the primary filter element for loading. For fleets managing multiple engine brands and filter part numbers, our marine spare parts sourcing guide for Gulf fleets covers the identification discipline and inventory strategy that prevents filter-related downtime across mixed engine rooms.

Frequently Asked Questions

Common questions from chief engineers and fleet managers about marine fuel filter selection, micron ratings, and Gulf-specific service intervals.

Get a Fuel Filter Cross-Reference

Send your engine serial number, arrangement number, and current filter part requirements for a same-day technical cross-reference and quotation. Include your vessel’s ETA at the delivery port for urgent requirements. Our team at zeemacgroup.com cross-references OEM part numbers against genuine and OEM-equivalent filter brands, validates micron ratings and flow capacities for your specific engine model, and confirms compatibility before any order ships. Whether you are running Caterpillar 3412 mains with MAN auxiliary gensets on a Gulf OSV, or Wärtsilä propulsion with Yanmar harbor generators on a coastal vessel, we consolidate your filter requirements into a single validated quotation with delivery to Jebel Ali, Khalifa Port, Hamriyah Free Zone, and all major Gulf ports and shipyards.

Frequently Asked Questions

What micron rating should a marine fuel filter have?

Primary fuel filters typically rate 10-30 microns for coarse particle capture and water separation. Secondary filters rate 2-10 microns, with modern common-rail injection systems requiring 2-5 micron absolute filtration to protect injectors and high-pressure pumps. Always confirm whether the published rating is nominal or absolute before accepting a cross-reference element.

How often should marine fuel filters be changed on Gulf-operating vessels?

OEM intervals range from 250-500 hours for Caterpillar, 2,000-4,000 hours for MAN four-stroke secondary elements, and model-specific ranges for Wärtsilä. Gulf ambient temperatures and variable fuel quality typically require 20-30% shorter intervals. Track differential pressure daily and replace when it reaches 70% of the alarm threshold, regardless of operating hours.

What is the difference between primary and secondary fuel filtration?

Primary filtration captures larger particles at 10-30 microns and separates free water from fuel. Secondary filtration removes fine particles at 2-10 microns before fuel reaches injection components. Dual-stage systems are mandatory for any engine with common-rail or unit injector technology, any vessel running HFO, and any operation with variable or unverified fuel quality.

How do catalytic fines affect fuel filters?

Catalytic fines are aluminum and silicon oxide particles from refinery cracking, typically 1-5 microns with a Mohs hardness of 7-8. ISO 8217 limits them to 60 mg/kg in HFO. They abrade injection equipment faster than most wear metals. Even after centrifuging, residual cat fines that pass an incorrectly rated or overloaded fine filter can destroy injector nozzles within hundreds of hours.

Can I use aftermarket marine fuel filters instead of OEM?

Aftermarket filters can work if sourced from established brands with verified cross-reference data, correct micron ratings, and validated water-separation performance. The risk is highest with unverified elements that have incorrect micron ratings or inadequate coalescing media. Always validate compatibility using the engine serial number and arrangement number, not just the model name.
